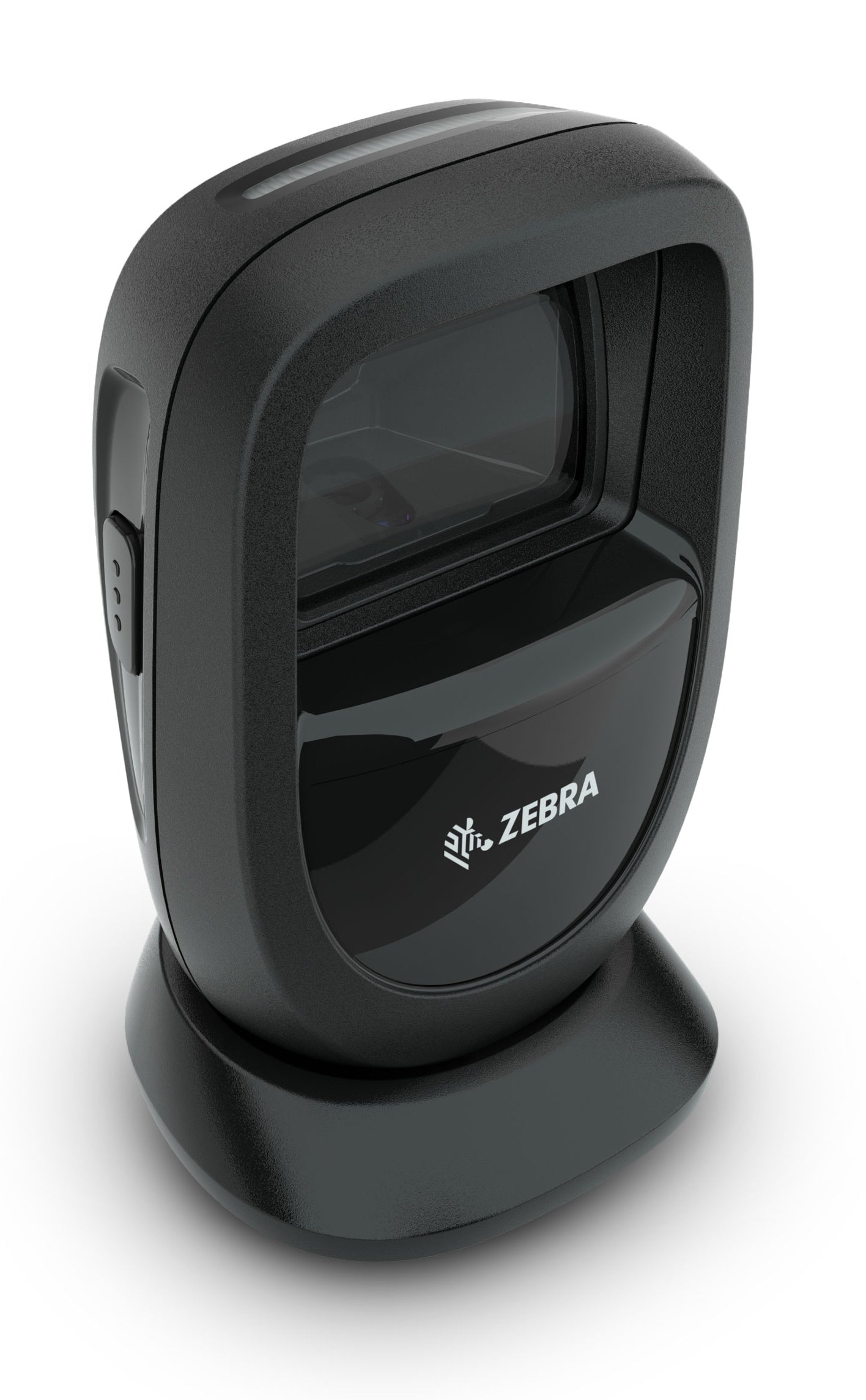

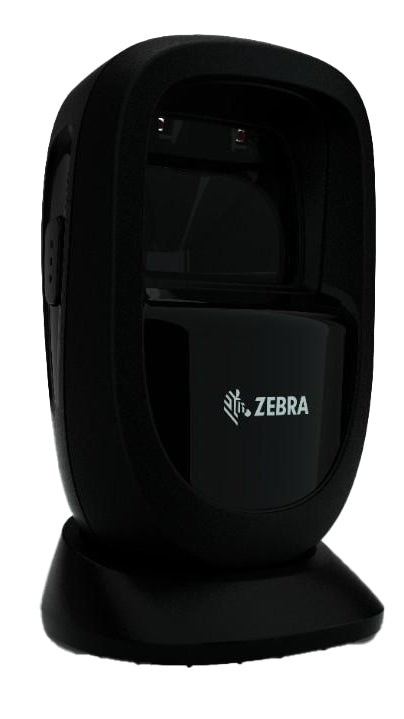

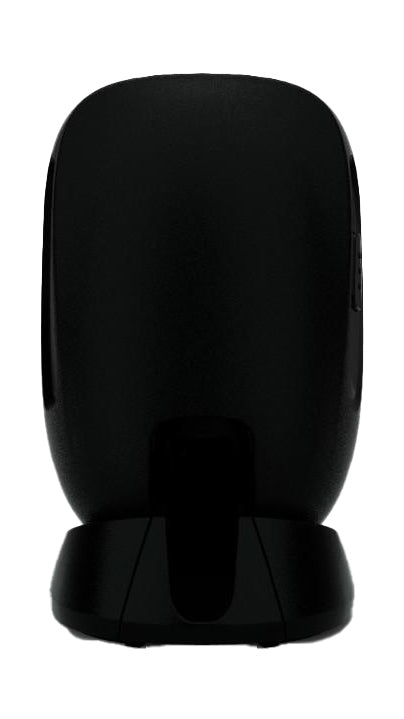

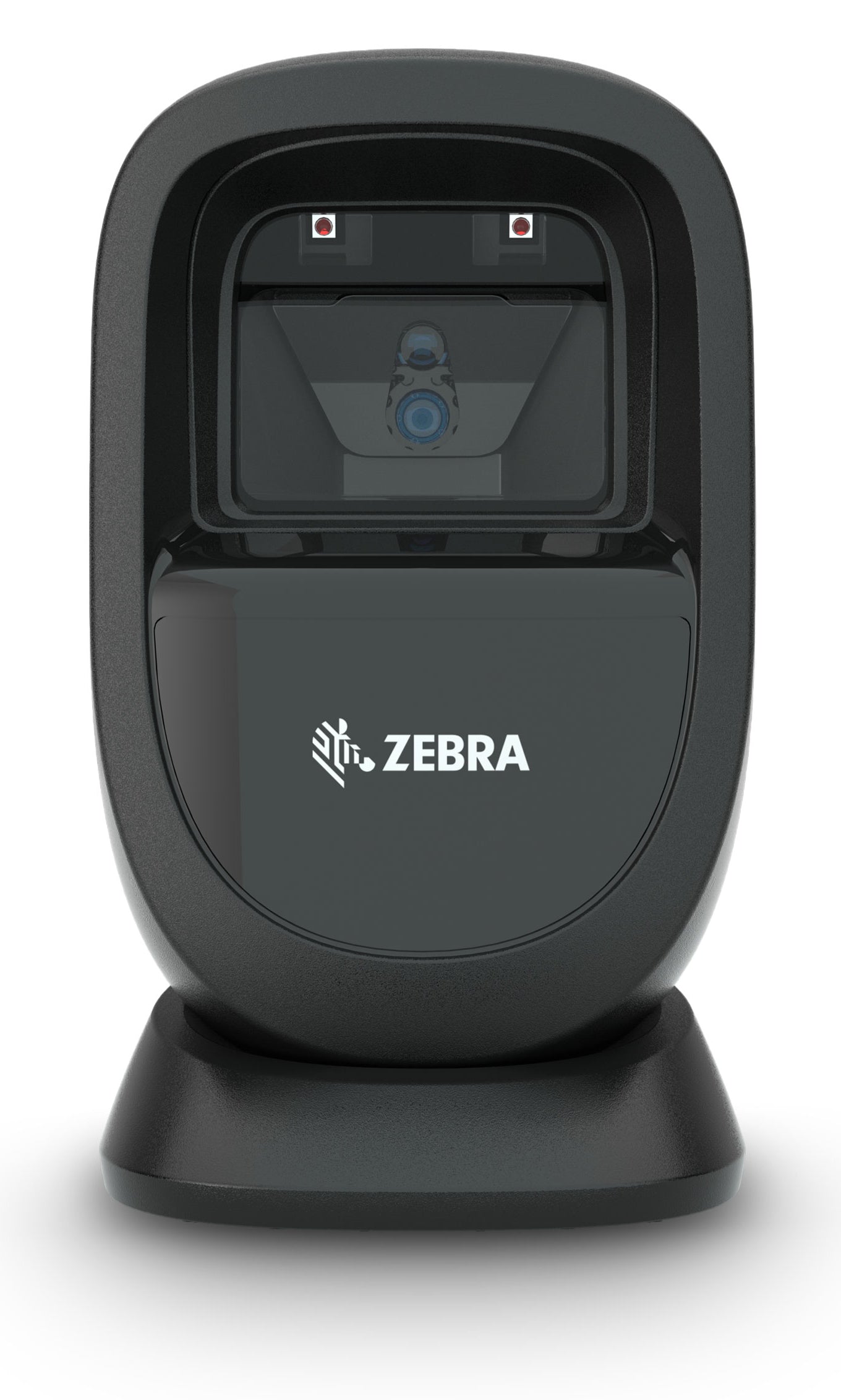

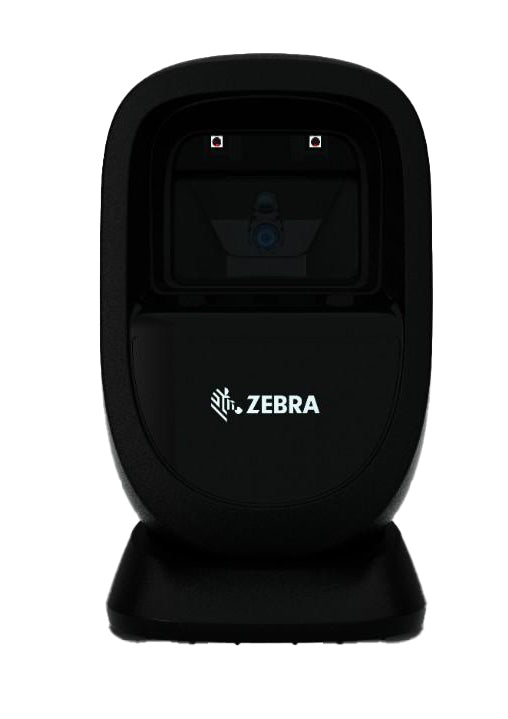

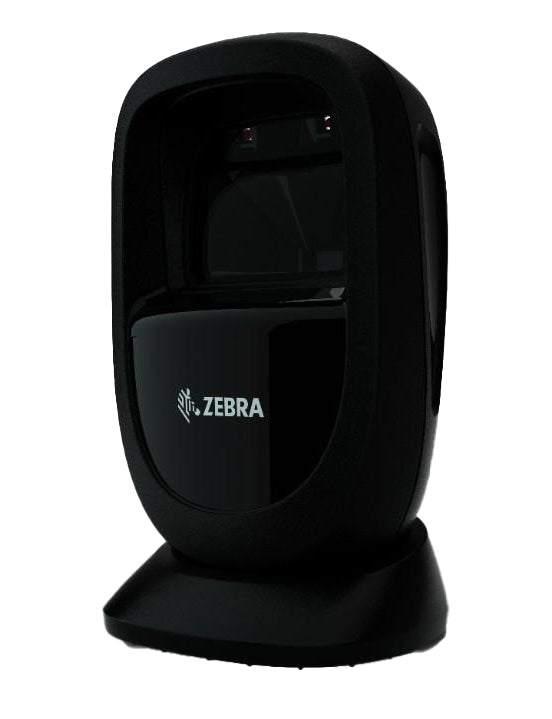

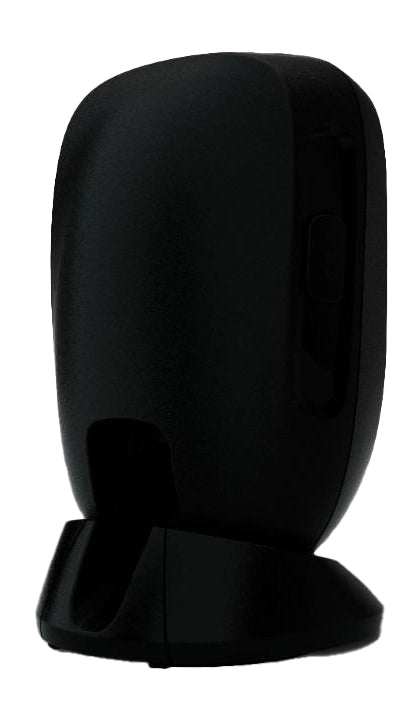

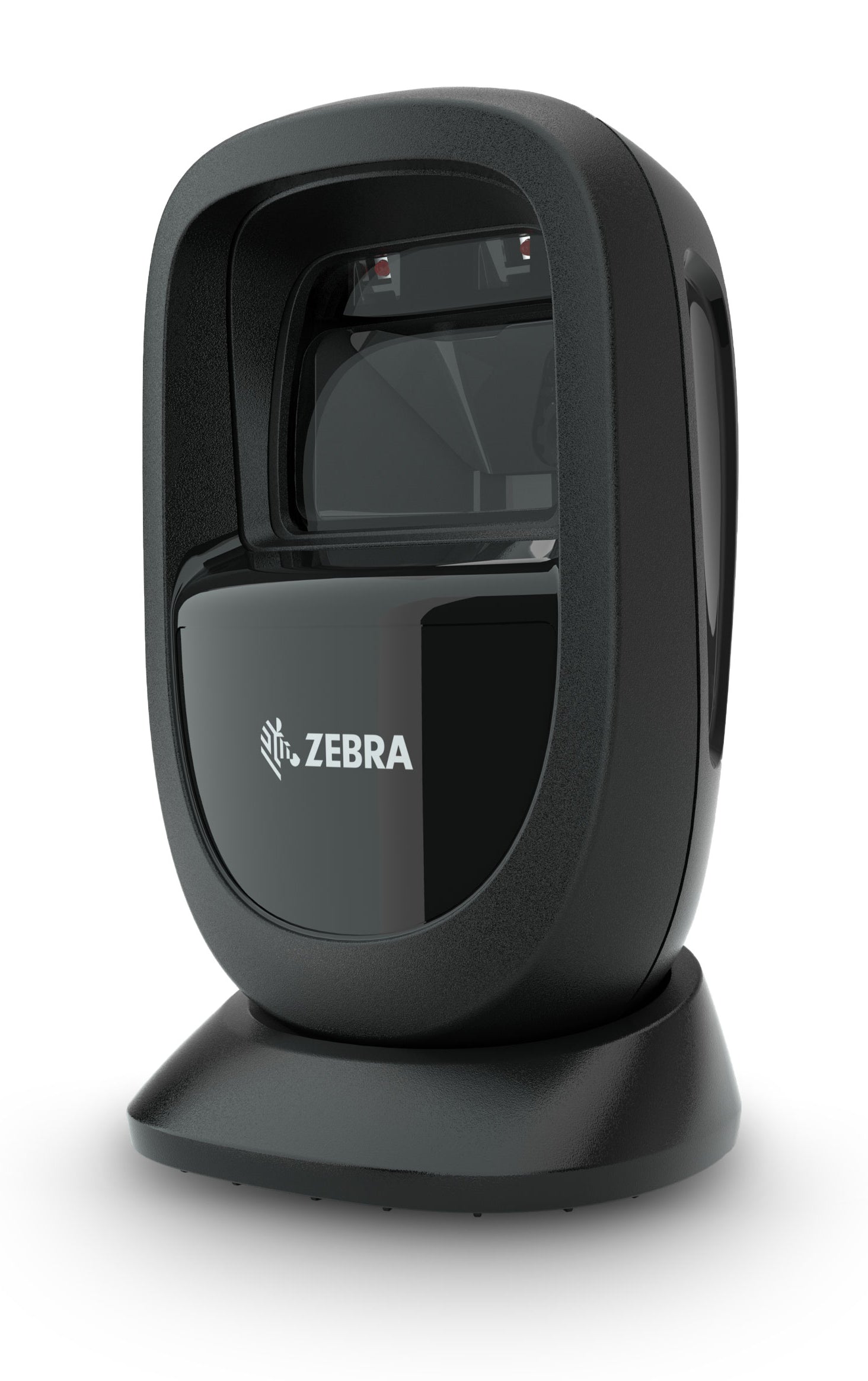

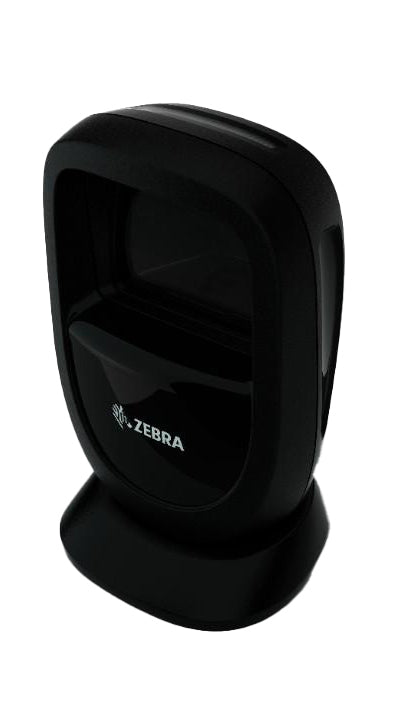

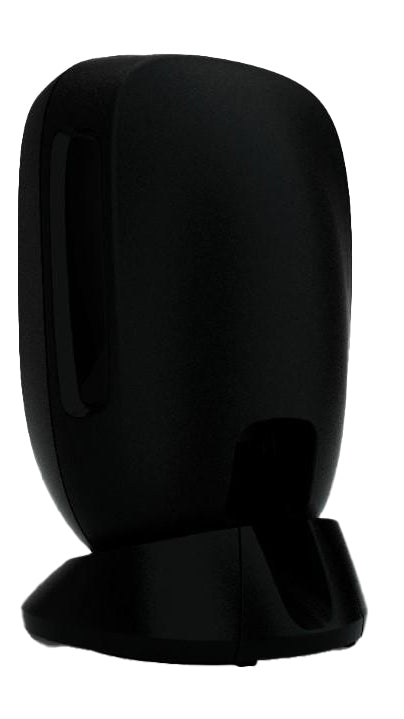

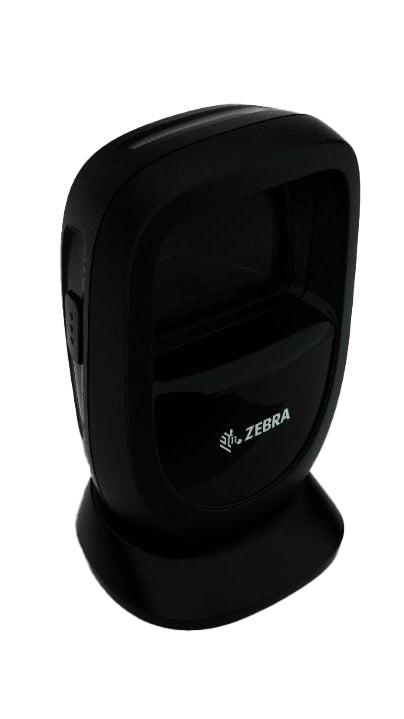

ZEBRA DS9308-SR Lecteur de codes-barres fixe 1D/2D LED (DS9308-SR4U2100AZW)
- Prix habituel
- 444.95$
- Prix soldé
- 444.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
Zebra DS9308-SR Lecteur de code barre fixe 1D/2D LED Noir
Marque:Zebra
Nom du produit:DS9308-SR
Code produit:DS9308-SR4U2100AZW
EAN/UPC:
5704174215257
5704174215257, 8596375197961, 4060533279164
Spécifications
Numérisation
Type
Characteristics of the device.
Lecteur de code barre fixe
Type de scanner
Indicates the type of scanner this product is
1D/2D
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linéaires (1D) codes barres acceptés
The product can read linear (1D) barcordes.
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
Matrix (2D) codes barres acceptés
The product can read matrix (2D) barcordes.
Aztec Code, Codes composites, Lecture code datamatrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Résolution du capteur optique (l x H)
1280 x 800 pixels
Distance de lecture
66 cm
Niveaux de luminosité (rayon direct du soleil)
0 - 107700 lux
Angle de lecture Horizontal (Pitch)
-60 - 60°
Connectivité
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Interfaces standards
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232, USB
représentation / réalisation
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP52
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir
Certification
EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Puissance
Type de source d'alimentation
What the power source is.
RS-232, USB
Tension d'entrée
The voltage (V) which is required to power the product.
5.5 V
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
86 mm
Profondeur
The distance from the front to the back of something.
83 mm
Hauteur
Height of the product
145 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
318 g
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Humidité relative de fonctionnement (H-H)
5 - 95%
Données logistiques
Code du système harmonisé
84716070
