ZEBRA DS5502 Lecteur de codes-barres fixe 1D/2D LED Noir (DS5502-SR40004ZZWW)

Prix habituel
434.95$
Prix soldé
434.95$
Prix habituel
Livraison gratuite

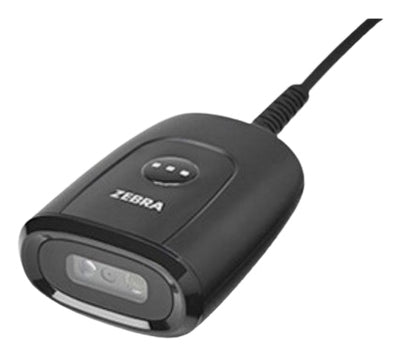

Zebra DS5502 Lecteur de code barre fixe 1D/2D LED Noir
Marque:Zebra
Nom du produit:DS5502
Code produit:DS5502-SR40004ZZWW
EAN/UPC: 4805388883797

Spécifications

Numérisation
Type
Characteristics of the device.
Lecteur de code barre fixe
Type de scanner
Indicates the type of scanner this product is
1D/2D
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linéaires (1D) codes barres acceptés
The product can read linear (1D) barcordes.
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar, MSI-Plessey, PDF417, U.P.C.
Matrix (2D) codes barres acceptés
The product can read matrix (2D) barcordes.
Aztec Code, Codes composites, Lecture code datamatrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Résolution du capteur optique (l x H)
1280 x 800 pixels
point de vue horizontale
48°
point de vue verticale
30°
Longueur d'onde
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
525 nm
Connectivité
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Interfaces standards
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232, USB
représentation / réalisation
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP54
Fonctions de protection
Physical effects from which the product is protected e.g. water resistant, crash proof.
Protection contre les décharges électrostatiques (ESD)
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir
Puissance
Type de source d'alimentation
What the power source is.
CC
Tension d'entrée
The voltage (V) which is required to power the product.
4.75 V
Consommation électrique
360 mA
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
72 mm
Profondeur
The distance from the front to the back of something.
30 mm
Hauteur
Height of the product
56 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
65,2 g
Informations sur l'emballage
Adaptateur d'alimentation externe
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Humidité relative de fonctionnement (H-H)
5 - 95%
Certificat
Conforme à la norme (WEEE, Waste Electrical and Electronic Equipment)
Détails techniques
Certificats de conformité
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS Chine, REACH, RoHS
