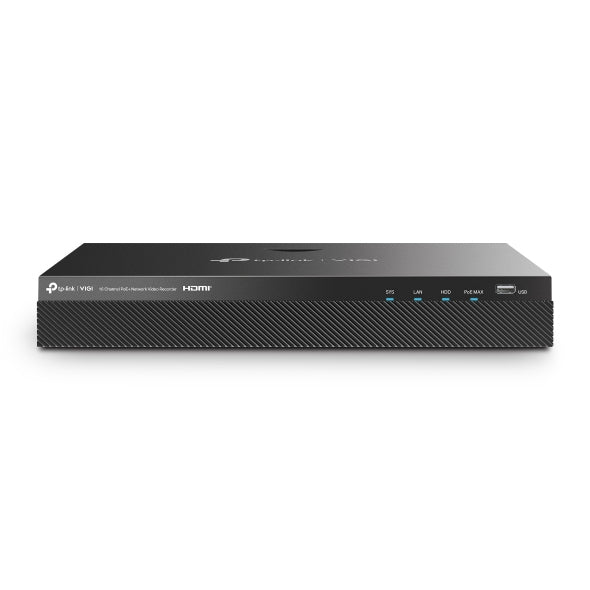

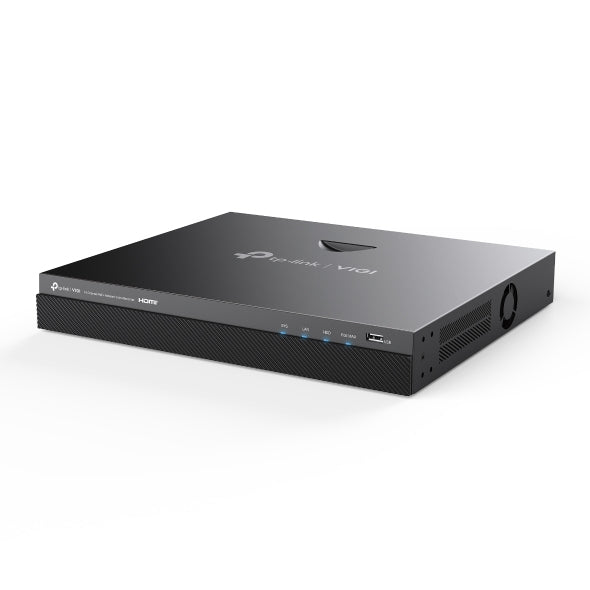

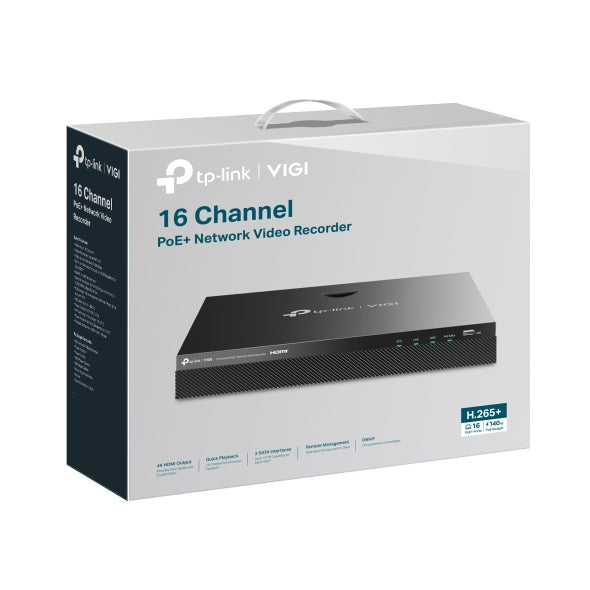

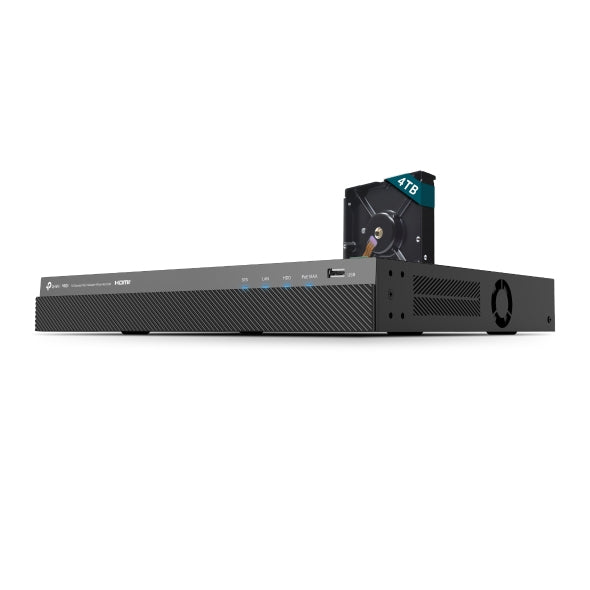

TP-LINK VIGI VIGINVR2016H-16MP4TB Noir (VIGI NVR2016H-16MP-4TB)
- Prix habituel
- 733.95$
- Prix soldé
- 733.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
TP-Link VIGI VIGINVR2016H-16MP4TB Noir
Marque:TP-Link
Nom du produit:VIGINVR2016H-16MP4TB
Code produit:VIGI NVR2016H-16MP-4TB
EAN/UPC:
4895252507195
4895252507195, 0840030712265, 840030712265
Spécifications
représentation / réalisation
Canaux d'entrée vidéo
The number of channels for video input that the device features.
16 canaux
Nombre de canaux lus simultanément
16 canaux
Modes d'enregistrement vidéo
720p, 1080p, 2160p
Résolution maximale
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Résolutions prises en charge
3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Détecteur de mouvement (vidéo)
Détection de perte vidéo
Multi-écrans
Formats audio pris en charge
The audio formats which this device or software can read/use e.g. MP3, MP4.
G.711, G.711 μ-law, G.726
Format vidéo pris en charge
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Modes de lecture
Fast play, En avant, Cadre par cadre, Plein écran, Pause, Play, Retourner
Cadence maximale
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
30 ips
Largeur de bande d’entrée
80 Mbit/s
Largeur de bande de sortie
60 Mbit/s
Caractéristiques
Bouton de réinitialisation
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir
Puissance
Consommation (max)
The maximum amount of power used by the device.
40 W
Consommation électrique typique
Amount of power used by this model; expressed in watts
6,2 W
Port par alimentation PoE (Power over Ethernet)
30 W
Budget Total Power over Ethernet (PoE)
140 W
Configuration minimale du système
Système mobile supporté
The operating systems e.g. Android, iOS, that can be used with the mobile device.
Android, iOS
Navigateurs supportés
List of supported browsers for this product
Chrome (57+), Firefox (52+), Edge (91+)
Technical details
Certificats de conformité
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
BSMI, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA, VCCI
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
330 mm
Profondeur
The distance from the front to the back of something.
285 mm
Hauteur
Height of the product
45 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2,1 kg
Poids du paquet
Weight of the packaged product.
4,1 kg
Caractéristiques Wireless LAN
Sans-fil (WiFi)
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Lecteur de disque
Nombre de disques durs installés
The number of hard drives built into the device.
1
Capacité disque dur
The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.
4 To
Nombre de disque dur supporté
The total number of hard drives that can be used in/with this product.
2
Capacité de stockage installée totale
As is, how much storage capacity does the product have.
4 To
Capacité de stockage maximum
The maximum amount of data that can be stored in the device.
32000 To
Interface du disque dur
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Connectivité
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Connexion Ethernet, supportant l'alimentation via ce port (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
LAN Ethernet : taux de transfert des données
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Power over Ethernet (PoE) Nombre de ports
16
Quantité de ports HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
ports de sortie VGA (D-Sub)
1
Quantité de Ports USB 2.0
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Entrées RCA audio
1
Sorties RCA audio
1
Quantité de Ports eSATA
The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.
1
eSATA
Entrée DC
The socket/plug where the DC electricity supply connects to the device.
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Humidité relative de fonctionnement (H-H)
10 - 90%
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Taux d'humidité relative (stockage)
10 - 90%
