TP-LINK VIGI NVR2016H-16P Enregistreur vidéo sur réseau Noir (VIGI-NVR2016H-16P)
- Prix habituel
- 347.95$
- Prix soldé
- 347.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait

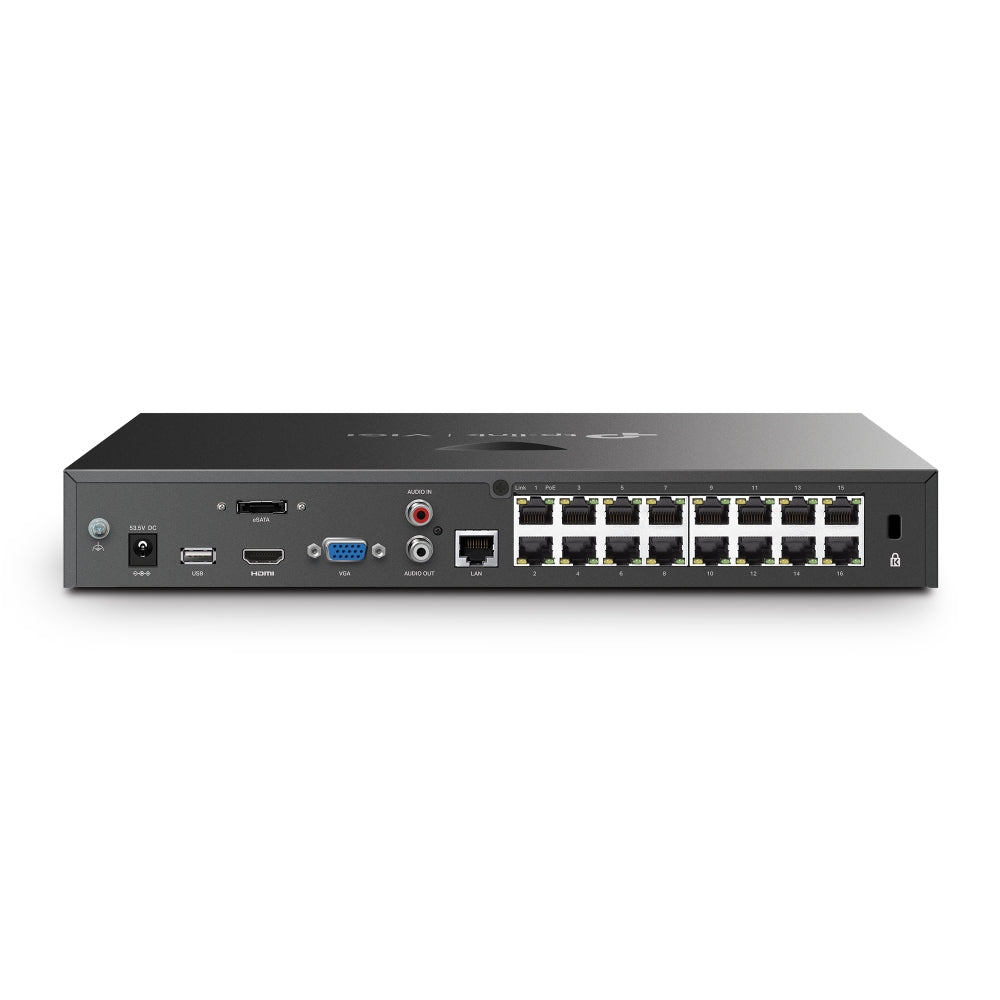

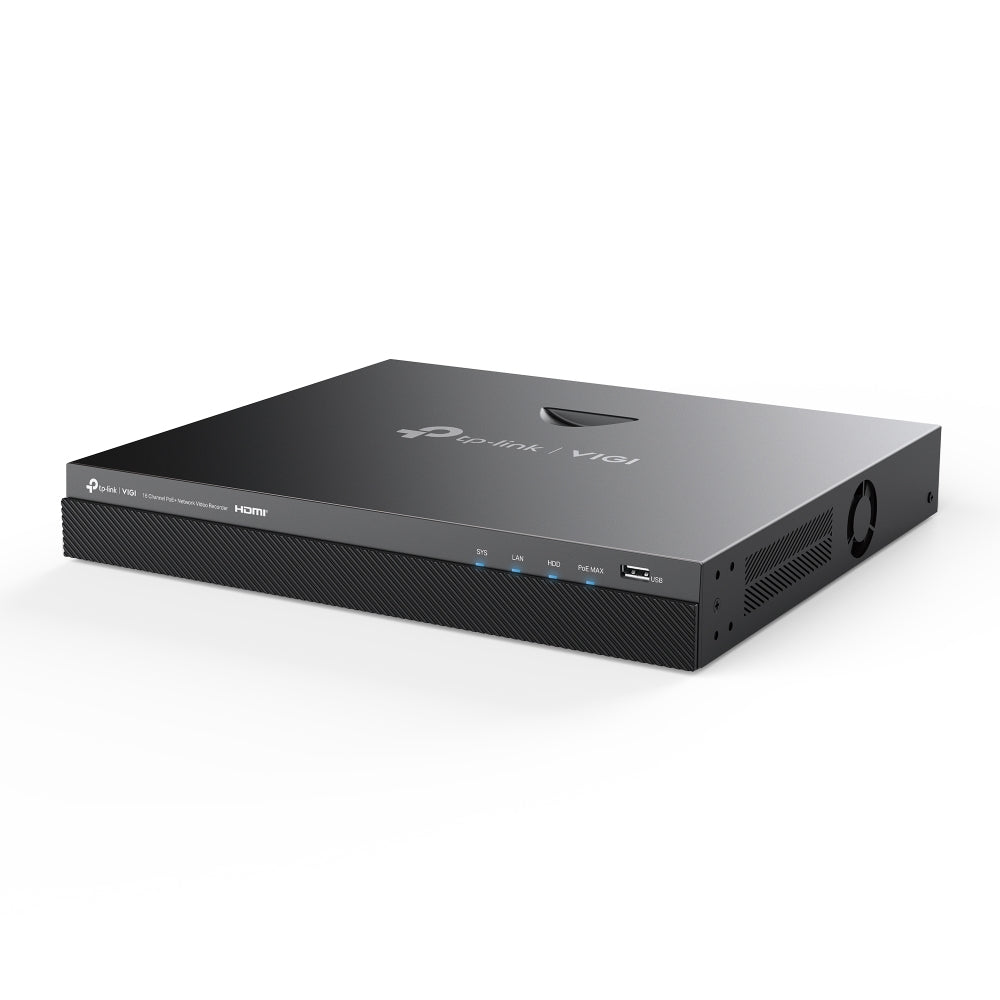

TP-Link VIGI NVR2016H-16P Enregistreur vidéo sur réseau Noir
Marque:TP-Link
Nom du produit:VIGI NVR2016H-16P
Code produit:VIGI NVR2016H-16P
EAN/UPC:
4895252504040
4895252504040, 0840030710360, 840030710360
Spécifications
représentation / réalisation
Canaux d'entrée vidéo
The number of channels for video input that the device features.
16 canaux
Nombre de canaux lus simultanément
16 canaux
Modes d'enregistrement vidéo
720p, 1080p
Résolution maximale
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Résolutions prises en charge
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Détecteur de mouvement (vidéo)
Formats audio pris en charge
The audio formats which this device or software can read/use e.g. MP3, MP4.
G.711 A-law, G.711 μ-law, G.726
Format vidéo pris en charge
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Modes de lecture
Digital zoom, Fast play, En avant, Plein écran, Pause, Play, Arrêt
Contrôles de lecture
Cadence maximale
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
30 ips
Largeur de bande d’entrée
80 Mbit/s
Largeur de bande de sortie
60 Mbit/s
Mode d'enregistrement
The different ways in which this device can record.
Manuel, Programme
Caractéristiques
Bouton de réinitialisation
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Puissance
Consommation (max)
The maximum amount of power used by the device.
40 W
Courant de sortie
2,43 A
Tension de sortie
53.5 V
Budget Total Power over Ethernet (PoE)
90 W
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
330 mm
Profondeur
The distance from the front to the back of something.
285 mm
Hauteur
Height of the product
45 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,9 kg
Poids du paquet
Weight of the packaged product.
3,2 kg
Caractéristiques Wireless LAN
Sans-fil (WiFi)
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Lecteur de disque
Capacité disque dur
The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.
0 Go
Nombre de disque dur supporté
The total number of hard drives that can be used in/with this product.
2
Capacité de stockage maximum
The maximum amount of data that can be stored in the device.
10 To
Interface du disque dur
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Connectivité
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Connexion Ethernet, supportant l'alimentation via ce port (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
LAN Ethernet : taux de transfert des données
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Power over Ethernet (PoE) Nombre de ports
16
Quantité de ports HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
ports de sortie VGA (D-Sub)
1
Quantité de Ports USB 2.0
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Quantité de Ports eSATA
The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.
1
Quantité de ports internes SATA
2
eSATA
Entrée ligne
Sortie audio
The type of audio output that the device produces, and the connector(s).
1
Entrée DC
The socket/plug where the DC electricity supply connects to the device.
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at
Protocoles réseau pris en charge
Network protocols tested as compatible with this product
UPnP (Plug and Play), NTP (Network Timing)
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Humidité relative de fonctionnement (H-H)
10 - 90%
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Contenu de l'emballage
Câbles inclus
Secteur
Adaptateur secteur fourni
Guide d'installation rapide
