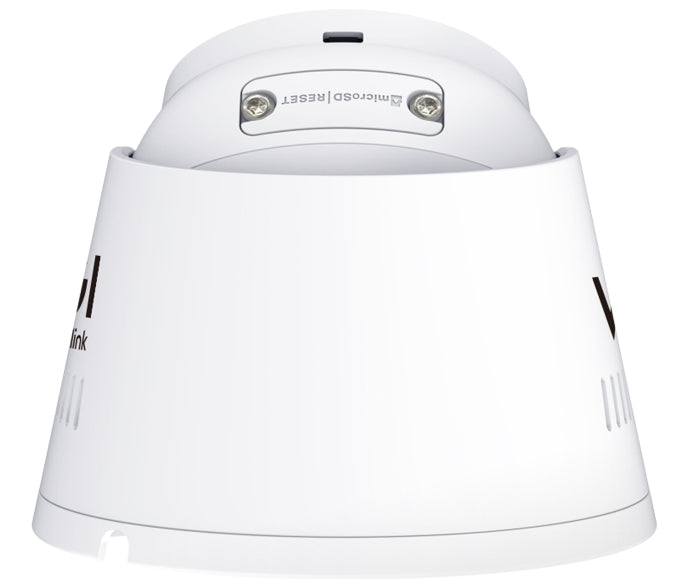

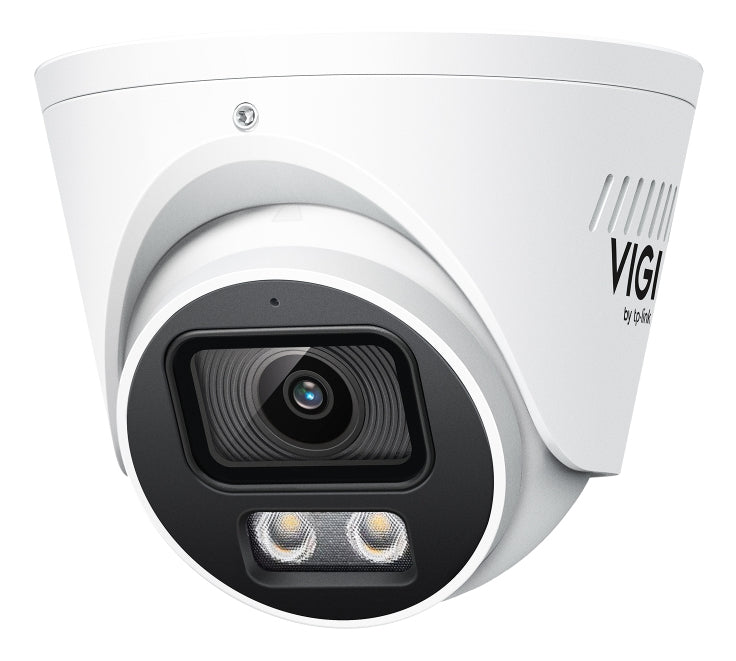

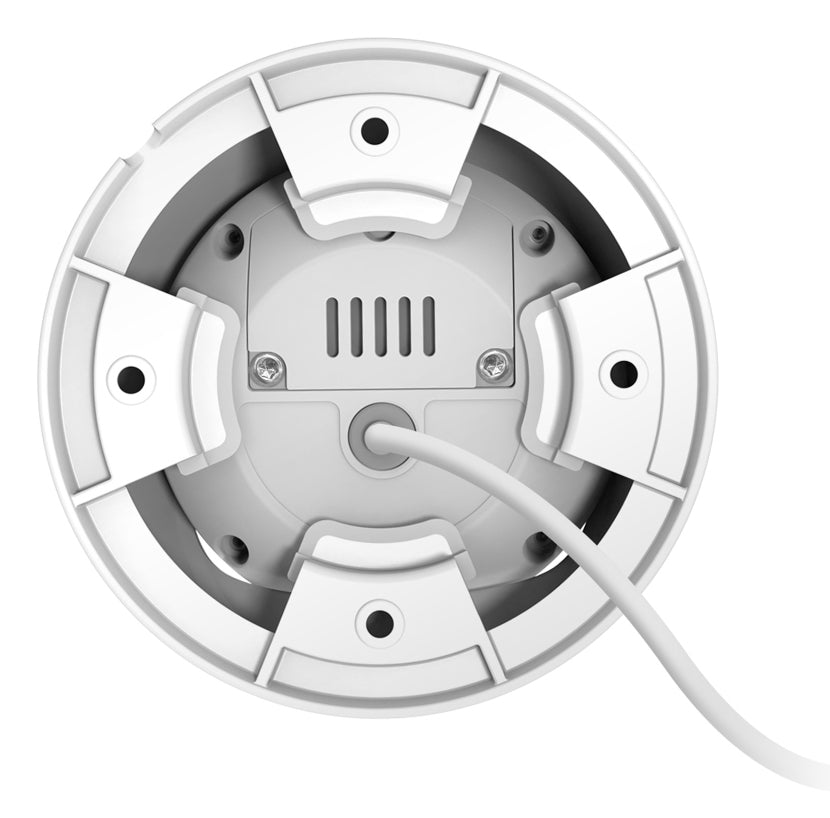

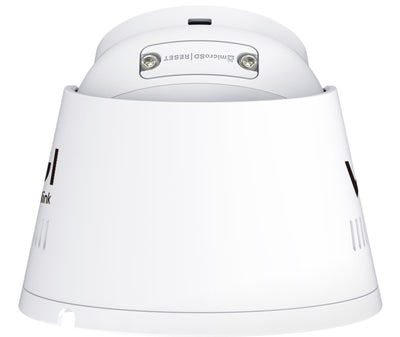

TP-LINK VIGI InSight S445S(2.8mm) Dôme Caméra de sécurité IP Extérieure 2688 x 1520 pixels Plafond/mur (INSIGHT S445S-2.8MM)
- Prix habituel
- 263.95$
- Prix soldé
- 263.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
TP-Link VIGI InSight S445S(2.8mm) Dôme Caméra de sécurité IP Extérieure 2688 x 1520 pixels Plafond/mur
Marque:TP-Link
Nom du produit:VIGI InSight S445S(2.8mm)
Code produit:INSIGHT S445S(2.8MM)
EAN/UPC:
1210002608305
1210002608305, 0810142822947, 810142822947
Spécifications
représentation / réalisation
Type
Characteristics of the device.
Caméra de sécurité IP
Installation prise en charge
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Extérieure
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Mode panoramique automatique
Large dynamique éventaille (WRD)
mode Jour/Nuit
Filtre de coupure infrarouge
alarme entrée/fin
Gamme dynamique
120 dB
Certification
CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF
Détecteur d'image
Taille du capteur optique
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 79 mm (1 / 79")
Scan progressif
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Panoramic camera
Type de capteur (caméra panoramique)
CMOS
Rapport signal/bruit (SNR) (caméra panoramique)
52 dB
Système d'objectif
Nombre de lentilles
The number of lenses installed in the device.
1
Distance de détection
59 m
Distance d'observation
25 m
Distance de reconnaissance
12 m
Mise au point fixe
Nombre maximum d'ouverture
1
Distance d'identification
6 m
Focale Fixe
2,8 mm
Audio
Haut-parleurs intégrés
The device contains speaker(s) to produce sound.
Système audio
System used to play music or speech.
2-voies
Canaux d'entrée audio
A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device.
2.0 canaux
Canaux de sortie audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
2.0 canaux
Microphone intégré
Microphone that is found inside the product.
Nombre de microphones
1
Plage de débit binaire
256 - 6000 Kbit/s
Réseau
Ethernet/LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1x, IEEE 802.3at
Protocoles réseau pris en charge
Network protocols tested as compatible with this product
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Vue en direct
Nombre de canaux de visualisation en direct simultanés
3 canaux
Support de stockage
Disque dur intégré
The product has a hard drive built into it.
Lecteur de cartes mémoires intégré
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Cartes mémoire compatibles
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Taille maximale de la carte mémoire
The maximum size of memory card that can be used with this device.
512 Go
Sécurité
Canaux d'entrée d'alarme
1
Canaux de sortie d'alarme
1
Protection par mot de passe
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Protection avec mot de passe
Utilisateur
Détecteur de mouvement (vidéo)
Alarme anti-sabotage active
Filtrage des adresses IP
Encryptage HTTPS
Type de notification d'alerte
E-mail, Notification push
Fonctions du système IVS (surveillance vidéo intelligente)
Objet abandonné, Détection de sons anormaux, Intrusion, Détection de franchissement de voie, Comptage de personnes, Détection de l'entrée d'une région, Détection de sortie de région, Changement d'environnement, Détection de véhicule
Détecteur de mouvement
Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.
Miroir
Classification des cibles véhicules et humaines
Authentification Digest
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
111 mm
Profondeur
The distance from the front to the back of something.
111 mm
Hauteur
Height of the product
81,4 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
550 g
Design
Format
Description des caractéristiques visibles du produit.
Dôme
Type de montage
Type of mounting e.g. wall mounting.
Plafond/mur
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Blanc
Matériau du boîtier/corps
Ce en quoi le boîtier du produit est fait.
Métal
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Résiste aux intempéries
Caméra
Illumination minimum
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,0005 lux
Angle de rotation
360°
Angle de vue de l’objectif, horizontal
112.5°
Angle de vue de l’objectif, vertical
61.4°
Angle de vue de l’objectif, diagonal
137°
Angle d'inclinaison
0 - 75°
Panoramique
0 - 360°
Balance des blancs
how the camera is doing the white balance
Balance des blancs de la zone
Type obturateur de la caméra
Indicates if the camera shutter is mechanical or electronic.
Électronique
Vitesse d'obturation de l'appareil photo
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
Nombre de zones de masquage de la vie privée
4
vision de nuit
Vision nocturne
Night vision is technology which allows you to see in low light conditions.
longueur d'onde infrarouge
850 nm
Vidéo
Résolution maximale
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2688 x 1520 pixels
Total des megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
4 MP
Format vidéo pris en charge
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Formats de compression visuels
H.264, H.264+, H.265, H.265+
Résolutions graphiques prises en charge
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Enregistrement vidéo
Recording moving visual images.
Nombre d'images par seconde
30 ips
Fréquence de trame thermique (NTSC)
50 Hz
Fréquence de trame thermique (PAL)
60 Hz
Diffusion vidéo
Réduction du bruit
Ajustement de la qualité d'image
Luminosité, Contraste, DNR, Saturation, Netteté
Contrôle de débit binaire
Débit binaire constant (CBR), Débit binaire variable (VBR)
Débit binaire
64 Kbit/s
Compensation de luminosité
Compensation de surbrillance (HLC)
Codage de la région d'intérêt
IR intelligent
Connectivité
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Entrée jack microphone
The socket where a microphone is connected to the device.
Caractéristiques de gestion
Gestion basée sur le web
Using a website/web application to manage something.
Navigateur Web
Géré sur le Cloud
Services Cloud pris en charge
FTP
Bouton de réinitialisation
Analyse du comportement
Audio exception detection, Détection de retrait d'objet
Puissance
Type de source d'alimentation
What the power source is.
CC, PoE
Tension d'entrée AC
The voltage of the AC electricity that is inputted into the product.
12 V
Consommation électrique typique
Amount of power used by this model; expressed in watts
15,6 W
Consommation (max)
The maximum amount of power used by the device.
17,9 W
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Humidité relative de fonctionnement (H-H)
0 - 95%
Taux d'humidité relative (stockage)
0 - 95%
Informations sur l'emballage
Type d'emballage
The type of product package e.g. box.
Boîte
Sustainability
Certificats de conformité
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
Contenu de l'emballage
nombre de caméras
The quantity of cameras that product can support.
1
Kit de montage
