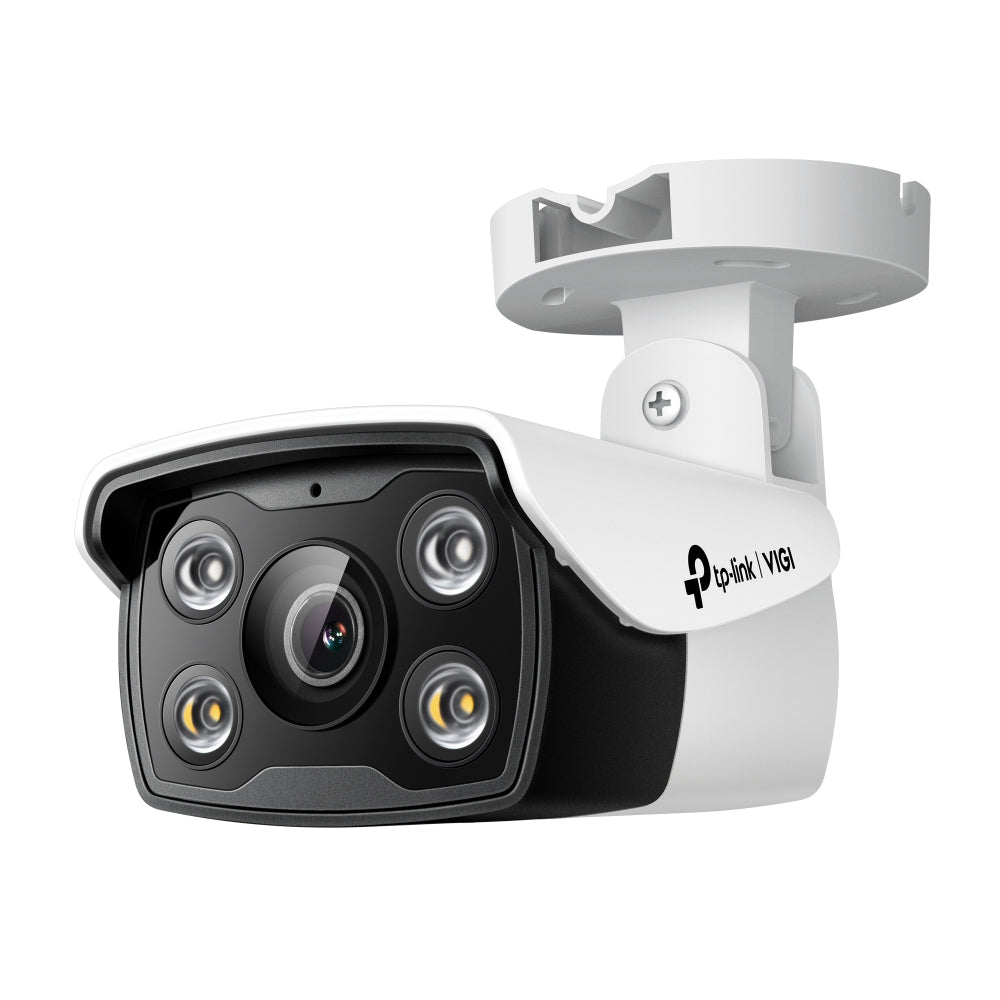

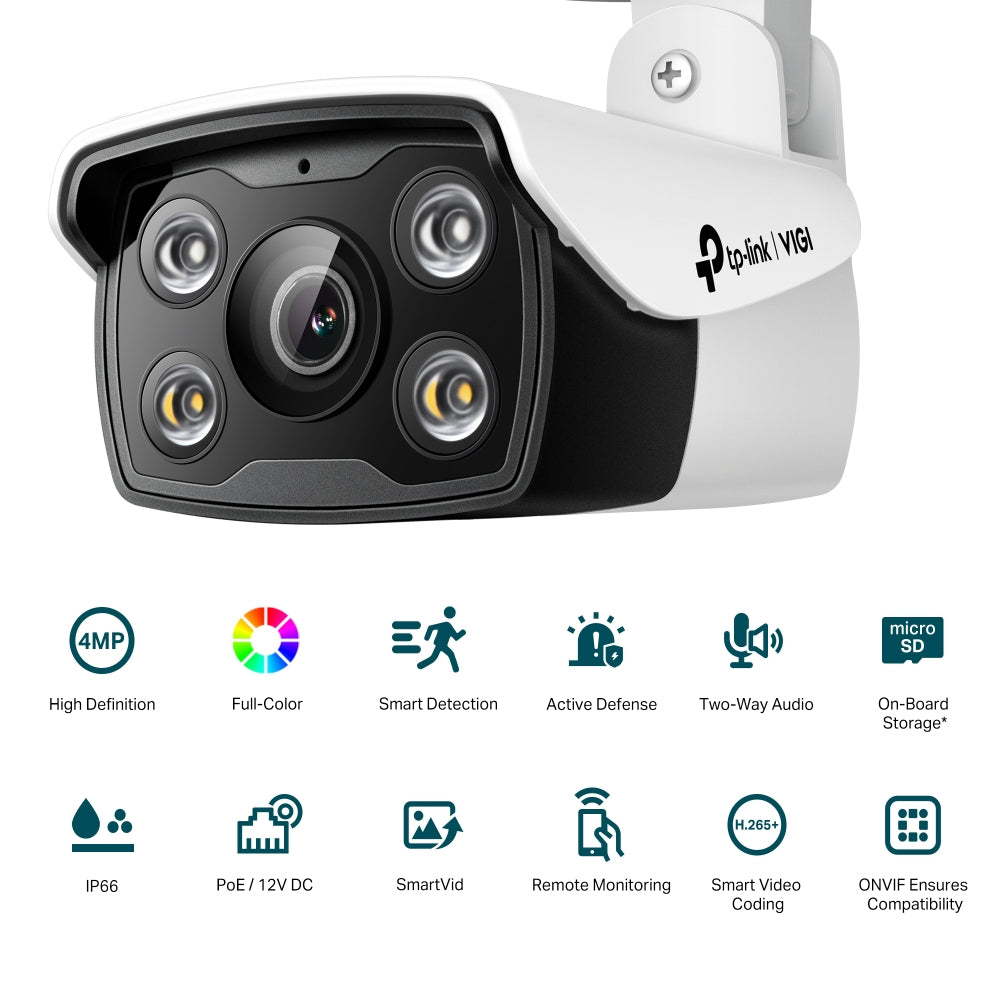

TP-LINK VIGI C340 Balle (forme) Caméra de sécurité IP Extérieure 2560 x 1440 pixels Plafond/Mur/Poteau (VIGI C340(4MM))
- Prix habituel
- 104.95$
- Prix soldé
- 104.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
TP-Link VIGI C340 Balle (forme) Caméra de sécurité IP Extérieure 2560 x 1440 pixels Plafond/Mur/Poteau
Marque:TP-Link
Nom du produit:VIGI C340
Code produit:VIGI C340(4MM)
EAN/UPC:
4897098688663
4897098688663, 4897098688625
Spécifications
représentation / réalisation
Type
Characteristics of the device.
Caméra de sécurité IP
Installation prise en charge
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Extérieure
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
mode Jour/Nuit
Caméra
Illumination minimum
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,005 lux
Angle de vue de l’objectif, horizontal
79°
Angle de vue de l’objectif, vertical
43°
Angle de vue de l’objectif, diagonal
93°
Angle d'inclinaison
-90 - 90°
Panoramique
-90 - 90°
Vitesse d'obturation de l'appareil photo
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
Nombre de zones de masquage de la vie privée
4
vision de nuit
Vision nocturne
Night vision is technology which allows you to see in low light conditions.
Distance de vision nocturne
30 m
Type de LED
IR
Nombre de DEL d'éclairage
2
longueur d'onde infrarouge
850 nm
Vidéo
Résolution maximale
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2560 x 1440 pixels
Total des megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
4 MP
Format vidéo pris en charge
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Formats de compression visuels
H.264, H.264+, H.265, H.265+
Résolutions graphiques prises en charge
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Nombre d'images par seconde
30 ips
Diffusion vidéo
Réduction du bruit
Ajustement de la qualité d'image
Luminosité, Contraste, Miroir, Saturation
Masquage des données personnelles
Contrôle de débit binaire
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Débit binaire
256 Kbps - 4 Mbps
Compensation de luminosité
Compensation de surbrillance (HLC)
Plage dynamique large numérique (DWDR)
Codage de la région d'intérêt
IR intelligent
Support de stockage
Disque dur intégré
The product has a hard drive built into it.
Lecteur de cartes mémoires intégré
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Cartes mémoire compatibles
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Taille maximale de la carte mémoire
The maximum size of memory card that can be used with this device.
256 Go
Caractéristiques de gestion
Navigateur Web
Bouton de réinitialisation
Puissance
Type de source d'alimentation
What the power source is.
CC, PoE
Consommation électrique typique
Amount of power used by this model; expressed in watts
3,4 W
Consommation (max)
The maximum amount of power used by the device.
7 W
Sortie CC en volts
12
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
78 mm
Profondeur
The distance from the front to the back of something.
70 mm
Hauteur
Height of the product
174 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
195 g
Sustainability
Conformité à la durabilité

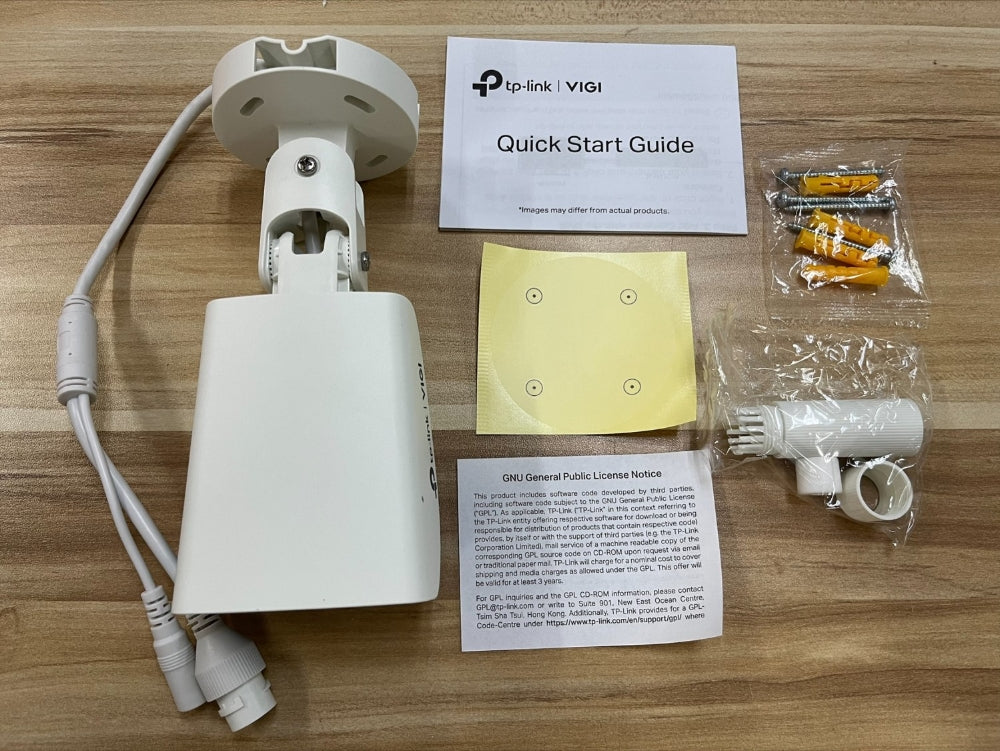

Contenu de l'emballage
nombre de caméras
The quantity of cameras that product can support.
1
Kit de montage
Manuel d'utilisation
Design
Format
Description des caractéristiques visibles du produit.
Balle (forme)
Type de montage
Type of mounting e.g. wall mounting.
Plafond/Mur/Poteau
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Noir, Blanc
Voyants
Oui
Matériau du boîtier/corps
Ce en quoi le boîtier du produit est fait.
Plastique
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP66
Détecteur d'image
Nombre de capteurs
1
Taille du capteur optique
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 3 mm (1 / 3")
Scan progressif
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Panoramic camera
Plage dynamique large numérique (DWDR) (caméra panoramique)
Système d'objectif
Nombre de lentilles
The number of lenses installed in the device.
1
Distance de détection
80 m
Distance d'observation
33 m
Distance de reconnaissance
16 m
Nombre maximum d'ouverture
1,6
Distance d'identification
8 m
Focale Fixe
4 mm
Audio
Haut-parleurs intégrés
The device contains speaker(s) to produce sound.
Système audio
System used to play music or speech.
2-voies
Canaux d'entrée audio
A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device.
1.0 canaux
Canaux de sortie audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
1.0 canaux
Fréquence d'échantillonnage
8 kHz
Rapport signal-sur-bruit
Is the ratio of signal intensity to noise intensity
52 dB
Microphone intégré
Microphone that is found inside the product.
Plage de débit binaire
64 - 4000 Kbit/s
Réseau
Ethernet/LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Type d'interface Ethernet
Fast Ethernet
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at
Protocoles réseau pris en charge
Network protocols tested as compatible with this product
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Sans-fil (WiFi)
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Vue en direct
Nombre de canaux de visualisation en direct simultanés
3 canaux
Connectivité
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Entrée DC
The socket/plug where the DC electricity supply connects to the device.
Sécurité
Protection par mot de passe
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Détecteur de mouvement (vidéo)
Filtrage des adresses IP
Encryptage HTTPS
Stockage en réseau (NAS)
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Humidité relative de fonctionnement (H-H)
0 - 95%
Taux d'humidité relative (stockage)
0 - 95%
Informations sur l'emballage
Largeur du colis
The distance from one side of the packaging to the other.
128 mm
Profondeur du colis
The distance from the front to the back of the packaging.
218 mm
Hauteur du colis
The distance from the top to the bottom of the packaging.
103 mm
Poids du paquet
Weight of the packaged product.
420 g

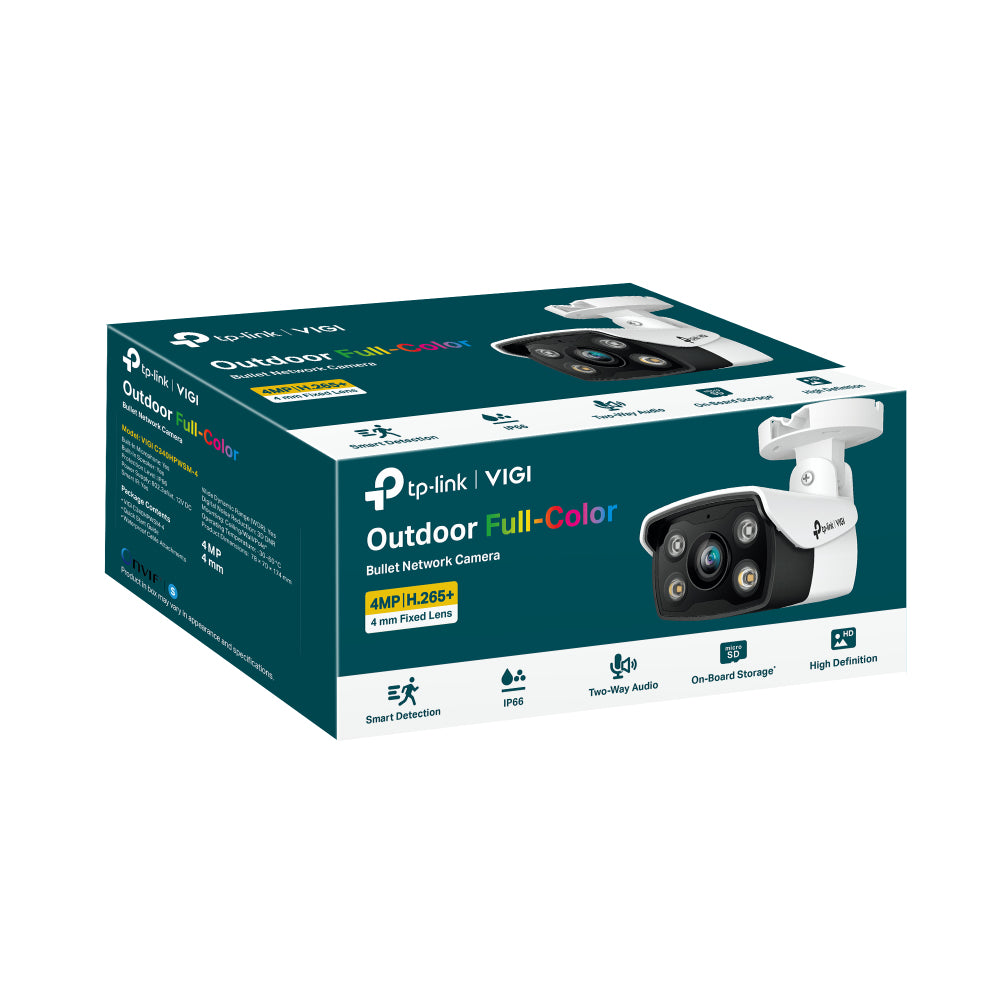

Type d'emballage
The type of product package e.g. box.
Boîte
