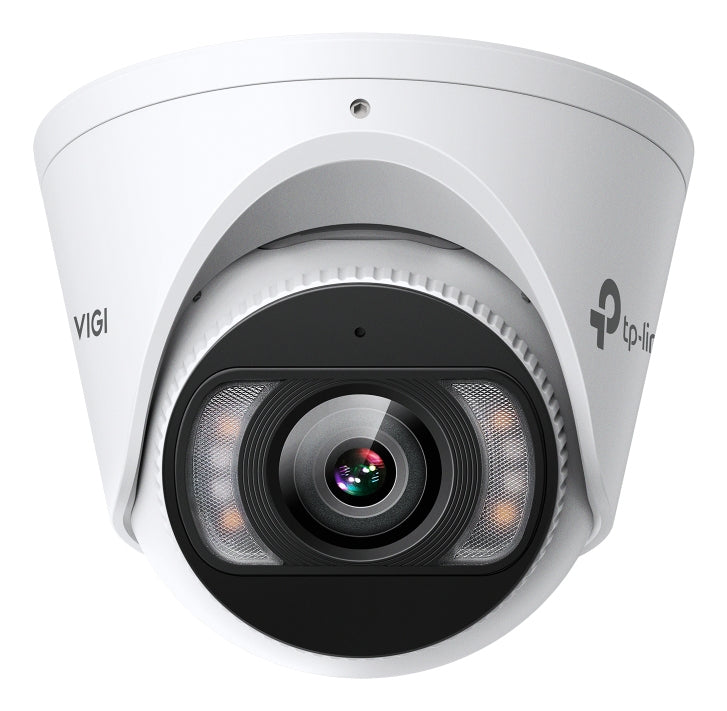

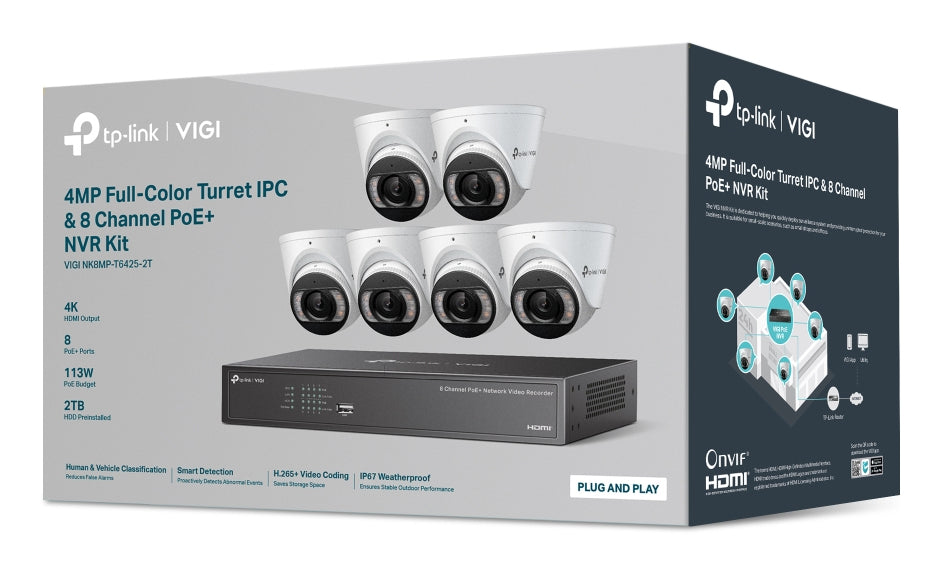

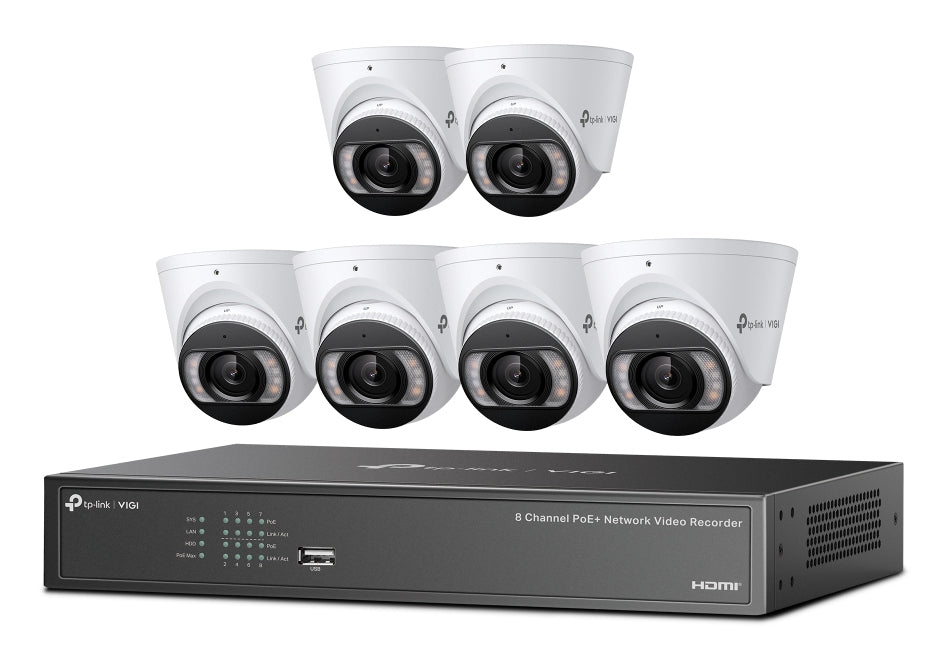

TP-Link VIGI 4MP TURRET IPC & 8-CH NVR KIT kit de vidéo-surveillance Avec fil 8 canaux
Marque:TP-Link
Nom du produit:VIGI 4MP TURRET IPC & 8-CH NVR KIT
Code produit:VIGI NK8MP-T6425-2T
EAN/UPC:
0810142820097
0810142820097, 810142820097
Spécifications
Caméra
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Caméra - inclus
This product includes a camera.
Couleur
The main colour of the product.
caméra de surveillance facteur de forme
Design of the surveillance (security) camera.
Tourelle
Interface d'appareil photo
The place where the camera connects to other devices e.g. USB port.
RJ-45
mode Jour/Nuit
Filtre de coupure infrarouge
longueur d'onde infrarouge
850 nm
Installation prise en charge
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Intérieur & extérieur
Focale Fixe
2,8 mm
Nombre maximum d'ouverture
1,6
Rotation
Capability to rotate device.
nombre de caméras
The quantity of cameras that product can support.
1
Matériau du boîtier/corps
Ce en quoi le boîtier du produit est fait.
Métal, Plastique
Distance de vision nocturne
30 m
Nombre de DEL d'éclairage
4
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Taille du capteur optique
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 2,7 mm (1 / 2.7")
Illumination minimum
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,005 lux
Type de LED
IR/Blanc
Vitesse d'obturation de l'appareil photo
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
Résolutions prises en charge
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Nomnbe d'ouverture minimum
The minimum size of the hole through which light enters a camera.
1,6
Scan progressif
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Poids et dimensions
Largeur appareil
11,1 cm
Profondeur caméra
11,1 cm
Caméra heihgt
8,37 cm
Poids de la caméra
480 g
Largeur Recorder
29,4 cm
Profondeur Recorder
18 cm
Hauteur Recorder
4,4 cm
Poids Recorder
1,12 kg

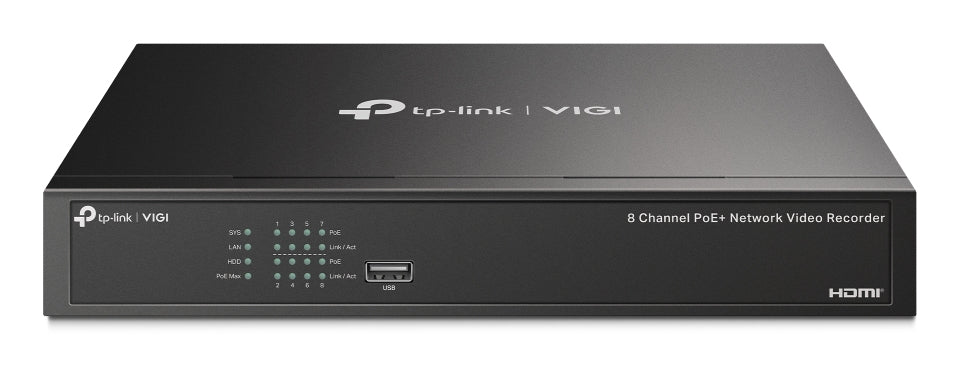

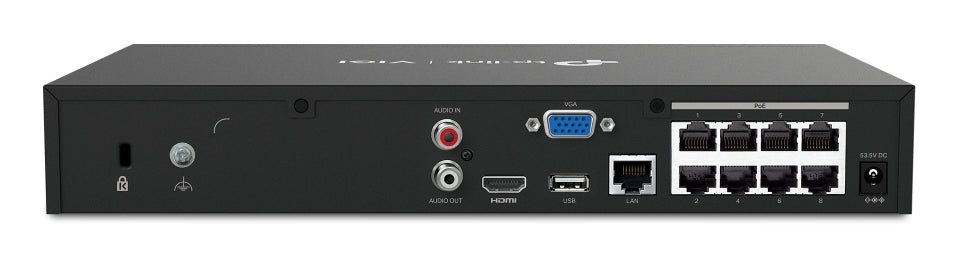

Enregistreur
Enregistreur inclus
The product includes a recorder.
Quantité de canaux
The number of channels the device has. There can be an individual input or output for each channel.
8 canaux
Type de support de stockage
Type of storage medium, like flash, hard disk drive, etc.
HDD
Capacité de stockage maximum
The maximum amount of data that can be stored in the device.
16 To
Modes d'enregistrement vidéo
720p, 1080p
Nombre d'images par seconde
30 ips
Nombre de ports VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantité de Ports USB 2.0
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Interface du disque dur
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Protocoles réseau pris en charge
Network protocols tested as compatible with this product
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP
Entrée DC
The socket/plug where the DC electricity supply connects to the device.
Quantité de ports HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Budget Total Power over Ethernet (PoE)
113 W
Réseau
Ethernet/LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Type d'interface Ethernet
Fast Ethernet
Puissance
Type de source d'alimentation
What the power source is.
CC, PoE
Consommation (max)
The maximum amount of power used by the device.
12,94 W
Audio
Microphone intégré
Microphone that is found inside the product.
Haut-parleurs intégrés
The device contains speaker(s) to produce sound.
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Humidité relative de fonctionnement (H-H)
0 - 95%
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Taux d'humidité relative (stockage)
0 - 95%
Technical details
Formats de compression visuels
H.264, H.264+, H.265, H.265+
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Blanc, Noir
Bouton de réinitialisation
