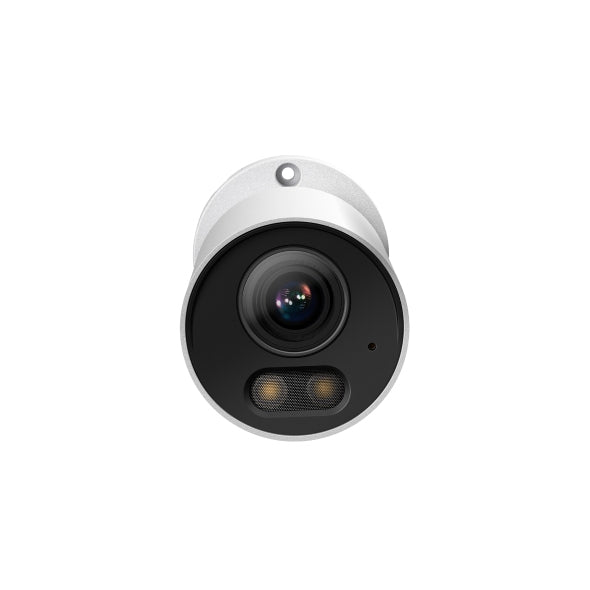

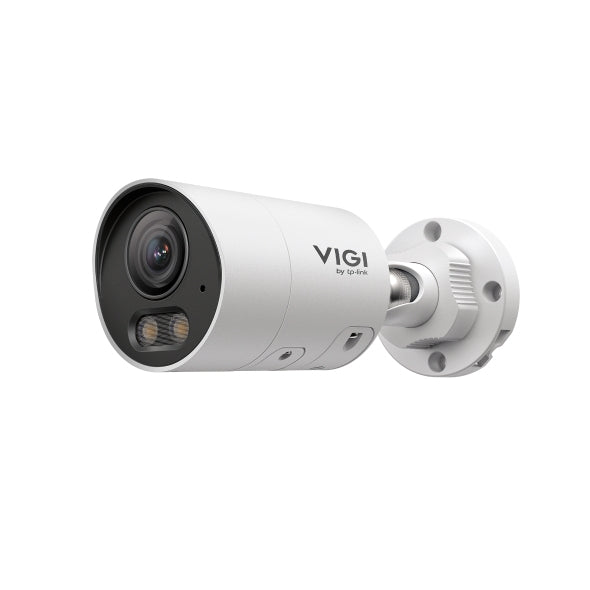

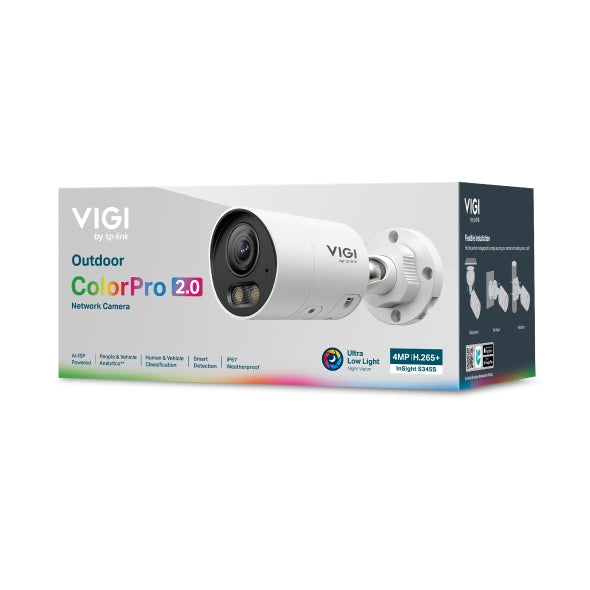

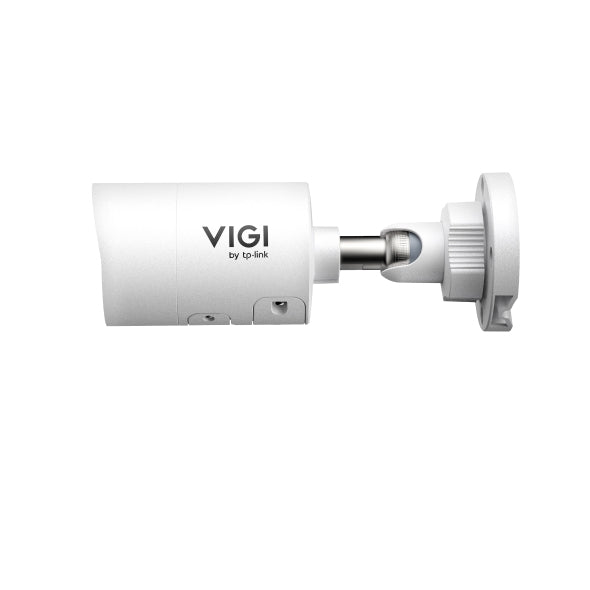

TP-LINK InSight S345S Balle (forme) Caméra de sécurité IP Extérieure 2688 x 1520 pixels Plafond/Mur/Poteau (INSIGHT S345S-4MM)
- Prix habituel
- 315.95$
- Prix soldé
- 315.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
TP-Link InSight S345S Balle (forme) Caméra de sécurité IP Extérieure 2688 x 1520 pixels Plafond/Mur/Poteau
Marque:TP-Link
Nom du produit:InSight S345S
Code produit:INSIGHT S345S(4MM)
EAN/UPC:
8885020625608
8885020625608, 1210002608299, 0810142822930, 810142822930
Spécifications
représentation / réalisation
Type
Characteristics of the device.
Caméra de sécurité IP
Installation prise en charge
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Extérieure
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Large dynamique éventaille (WRD)
Filtre de coupure infrarouge
alarme entrée/fin
Gamme dynamique
120 dB
Détecteur d'image
Taille du capteur optique
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 1,79 mm (1 / 1.79")
Scan progressif
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Type de capteur
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Système d'objectif
Nombre de lentilles
The number of lenses installed in the device.
1
Distance de détection
76 m
Distance d'observation
29 m
Distance de reconnaissance
14 m
Nombre maximum d'ouverture
1
Distance d'identification
7 m
Focale Fixe
4 mm
Vidéo
Résolution maximale
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2688 x 1520 pixels
Total des megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
4 MP
Formats de compression visuels
H.264, H.264+, H.265, H.265+
Résolutions graphiques prises en charge
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Diffusion vidéo
Réduction du bruit
Technologie de réduction de bruit
Répression du bruit digital 3d
Contrôle de débit binaire
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Débit binaire
Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps
Compensation de luminosité
Compensation de surbrillance (HLC)
Codage de la région d'intérêt
IR intelligent
Connectivité
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Sécurité
Canaux d'entrée d'alarme
1
Canaux de sortie d'alarme
1
Protection par mot de passe
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Détecteur de mouvement (vidéo)
Alarme anti-sabotage active
Filtrage des adresses IP
Encryptage HTTPS
Fonctions du système IVS (surveillance vidéo intelligente)
Objet abandonné, Détection de sons anormaux, Détection humaine, Intrusion, Détection de franchissement de voie, Détection de l'entrée d'une région, Détection de sortie de région, Changement d'environnement, Détection de véhicule
Authentification Digest
Sustainability
Certificats de conformité
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Contenu de l'emballage
nombre de caméras
The quantity of cameras that product can support.
1
Kit de montage
Manuel d'utilisation
Design
Format
Description des caractéristiques visibles du produit.
Balle (forme)
Type de montage
Type of mounting e.g. wall mounting.
Plafond/Mur/Poteau
Couleur du produit
La couleur, p. ex. rouge, bleu, vert, noir, blanc.
Blanc
Matériau du boîtier/corps
Ce en quoi le boîtier du produit est fait.
Métal
Code (IP) Internationale Protection
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Caméra
Illumination minimum
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,0005 lux
Angle de rotation
360°
Angle de vue de l’objectif, horizontal
95°
Angle de vue de l’objectif, vertical
51°
Angle de vue de l’objectif, diagonal
115°
Angle d'inclinaison
0 - 75°
Panoramique
0 - 360°
Vitesse d'obturation de l'appareil photo
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
vision de nuit
Vision nocturne
Night vision is technology which allows you to see in low light conditions.
Distance de vision nocturne
30 m
Type de LED
IR/Blanc
Nombre de DEL d'éclairage
2
longueur d'onde infrarouge
850 nm
Audio
Haut-parleurs intégrés
The device contains speaker(s) to produce sound.
Système audio
System used to play music or speech.
2-voies
Rapport signal-sur-bruit
Is the ratio of signal intensity to noise intensity
52 dB
Microphone intégré
Microphone that is found inside the product.
Réseau
Ethernet/LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Type d'interface Ethernet
Fast Ethernet
Protocoles réseau pris en charge
Network protocols tested as compatible with this product
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Sans-fil (WiFi)
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Support de stockage
Disque dur intégré
The product has a hard drive built into it.
Lecteur de cartes mémoires intégré
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Cartes mémoire compatibles
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Taille maximale de la carte mémoire
The maximum size of memory card that can be used with this device.
512 Go
Caractéristiques de gestion
Navigateur Web
Géré sur le Cloud
Puissance
Type de source d'alimentation
What the power source is.
CC, PoE
Sortie CC en volts
12
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Humidité relative de fonctionnement (H-H)
0 - 95%
Taux d'humidité relative (stockage)
0 - 95%
Poids et dimensions
Diamètre
Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.
6,6 cm
Longueur du produit
The measurement or extent of something from end to end.
191 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
600 g
