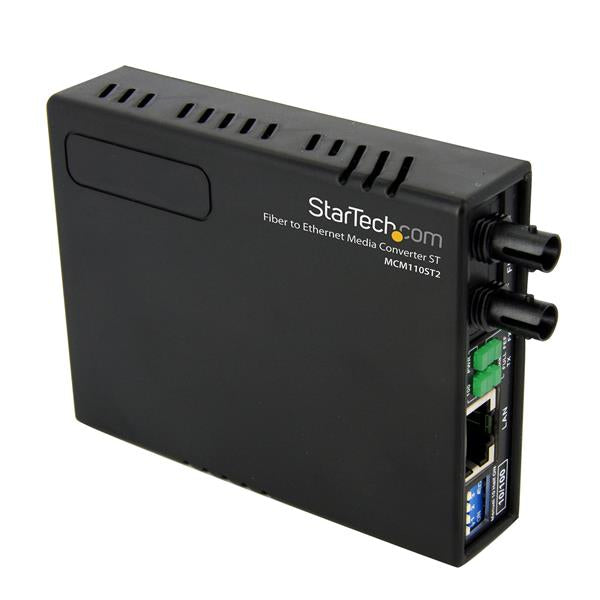

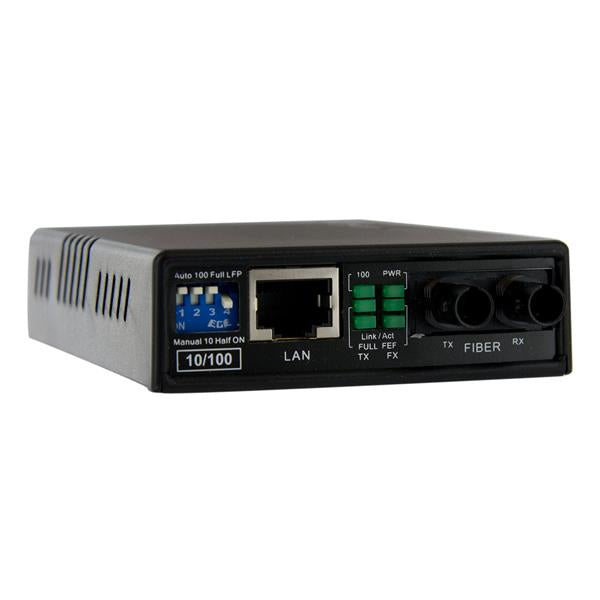

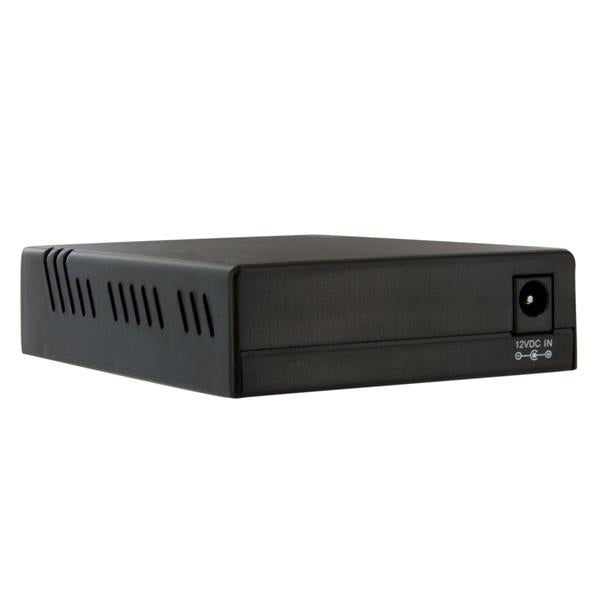

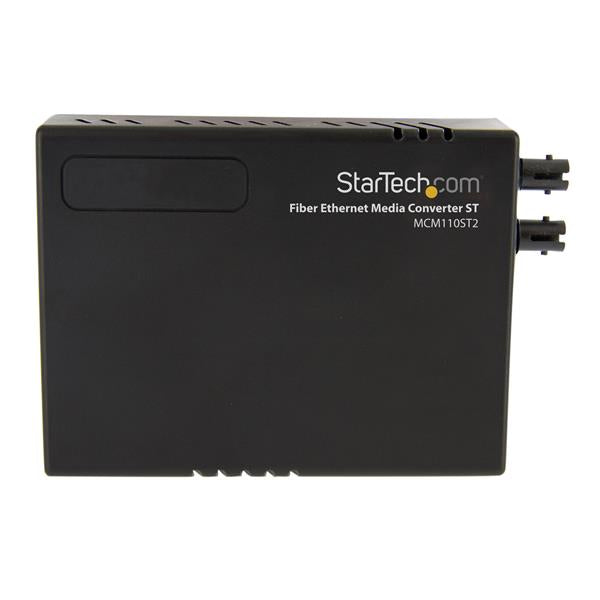

STARTECH convertisseur de support réseau 100 Mbit/s 1310 nm (MCM110ST2)
- Prix habituel
- 111.95$
- Prix soldé
- 111.95$
- Prix habituel
-
Livraison gratuite
Impossible de charger la disponibilité du service de retrait
StarTech.com MCM110ST2 convertisseur de support réseau 100 Mbit/s 1310 nm
Marque:StarTech.com
Nom du produit:MCM110ST2
Code produit:MCM110ST2
EAN/UPC:
0065030835633
0065030835633, 065030835633
Spécifications
Réseau
Débit de transfert des données maximum
The maximum speed with which data can be transmitted from one device to another.
100 Mbit/s
Convertisseur d'interface d'entrée
A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal.
10Base-T, 100BASE-FX, 100Base-TX
Standards réseau
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u
LAN Ethernet : taux de transfert des données
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Taux de transfert de données
Rate at which data can be transferred MC, expressed in units per second; may vary on network configurations
100 Mbit/s
Système recto-verso
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Complète, Demi
Caractéristiques
Interne
The product is built in.
Voyants
Oui
Matériau du boîtier/corps
Ce en quoi le boîtier du produit est fait.
Plastique
Puissance
Tension d'entrée
The voltage (V) which is required to power the product.
100 - 240 V
Tension de sortie
12 V
Courant de sortie
0,2 A
Consommation électrique typique
Amount of power used by this model; expressed in watts
2,4 W
Connexion Ethernet, supportant l'alimentation via ce port (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Type de prise
Type M

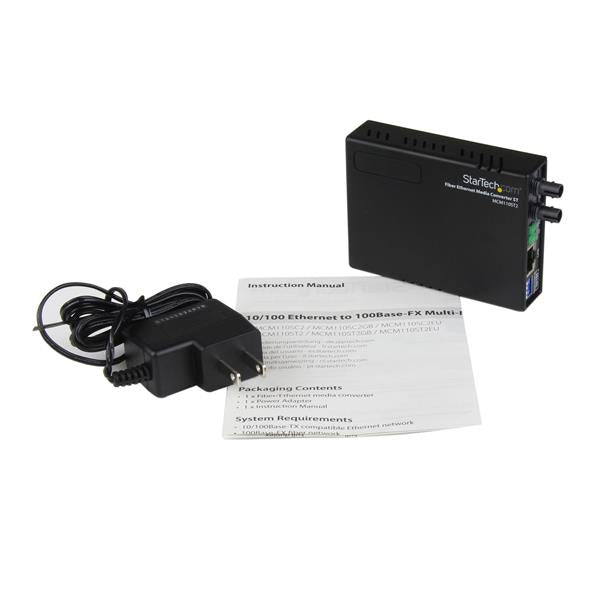

Contenu de l'emballage
Adaptateur secteur fourni
Manuel d'utilisation
Certificat
Certificats de conformité
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, TAA, REACH
représentation / réalisation
Distance de transfert maximale
The greatest distance over which the data/signal can be transferred.
2000 m
Longueur d'onde
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Multiplexage en longueur d'onde
Sensibilité
A measure of the device's response to slight changes or signals.
-31 dBmW
Bilan de liaison
11 dB
Temps moyen entre pannes
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism
65000 h
Connectivité
Technologie de connectivité
The technology that enables connectivity of the device, e.g. wired or wireless.
Avec fil
Nombre de port ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Connecteur de fibre optique
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
ST
Poids et dimensions
Largeur
The measurement or extent of something from side to side.
75 mm
Profondeur
The distance from the front to the back of something.
95 mm
Hauteur
Height of the product
20 mm
Poids
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
82 g
Conditions environnementales
Température d'opération
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Température hors fonctionnement
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Humidité relative de fonctionnement (H-H)
10 - 90%
Informations sur l'emballage
Largeur du colis
The distance from one side of the packaging to the other.
145 mm
Profondeur du colis
The distance from the front to the back of the packaging.
175 mm
Hauteur du colis
The distance from the top to the bottom of the packaging.
61 mm
Poids du paquet
Weight of the packaged product.
273 g
